C-Frame Hydraulic Presses: 60–150 Ton

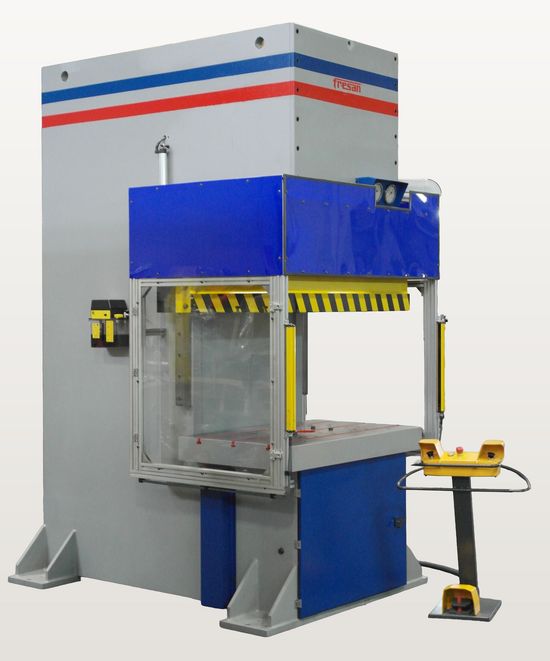

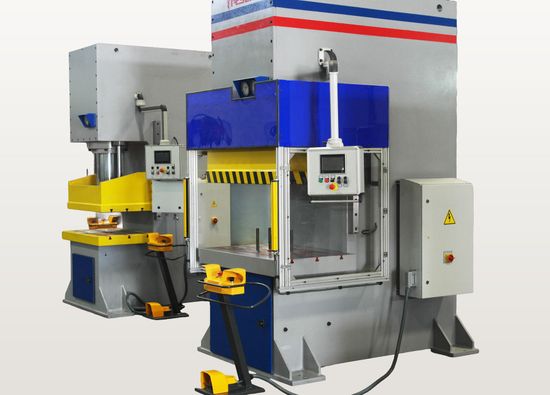

The FHP series is a C-frame hydraulic press capable of a wide variety of sheet metal forming applications from 60 to 150 tons. The open front gives three-sided access to the die area for fast tool changes and part handling, while the rigid frame construction keeps deflection low under full load. An optional hydraulic die cushion can be added for deep drawing applications.
Forming, pressing & shallow drawing
The ram alone forms, presses and shallow-draws the part in one motion, with no separate blank-holder force. This covers straightforward pressing, forming and shallow drawing at a lower investment than the cushioned version below.
Die cushion & controlled deep drawing
The optional hydraulic die cushion adds a second circuit below the table: it powers the blank holder, which clamps the sheet and controls material flow while the ram draws the part into the die. This is what makes deeper, more complex draws possible without wrinkling or tearing. Cushion force, stroke and speed are programmed on the touchscreen alongside the ram parameters.
Standard Specifications
Control & operation
- •Touchscreen control
- •Recipes for different product configurations
- •Operating parameters (force, stroke, etc.) adjustable via touchscreen
- •Light curtains around the table
- •Safety controller
- •Overpressure/safety valve
- •Two-hand & foot pedal control
Hydraulics & construction
- •Rigid C-frame construction for low deflection under heavy loads
- •Secondary pistons for low cycle times
- •Heavy-duty linear guides for excellent stability under heavy loads
- •Central lubrication system
- •Hydraulic system with DGUV/TÜV certified valves
- •CE safety accreditation
- •Hydraulic filter contamination switch
Technical Specifications
All dimensions and specs below are for the base FHP model. Cushion-related rows apply when the optional hydraulic die cushion is specified.
| Model | FHP 60 | FHP 100 | FHP 150 |
|---|---|---|---|
| Press Force (Ton) | 60 | 100 | 150 |
| Stroke (mm)Stroke (in) | 40015.75 | 40015.75 | 40015.75 |
| Daylight (mm)Daylight (in) | 60023.62 | 60023.62 | 60023.62 |
| Table Size (mm)Table Size (in) | 600 x 50023.62 x 19.69 | 800 x 50031.5 x 19.69 | 1000 x 60039.37 x 23.62 |
| Throat Depth (mm)Throat Depth (in) | 31012.2 | 31012.2 | 36014.17 |
| Advance Speed (mm/sec)Advance Speed (in/min) | 100236 | 110260 | 130307 |
| Pressing Speed (mm/sec)Pressing Speed (in/min) | 1024 | 1024 | 5–1512–35 |
| Return Speed (mm/sec)Return Speed (in/min) | 150354 | 160378 | 180425 |
| Motor Power (kW)Motor Power (hp) | 1115 | 1115 | 18.525 |
| Cushion Power (Ton) | 20 | 40 | 50 |
| Cushion Stroke (mm)Cushion Stroke (in) | 1505.91 | 1505.91 | 1505.91 |
Need a bigger press? Explore our H-Frame & Deep Drawing Presses - up to 1000 tons
Fresan also manufactures H-frame deep drawing presses for larger-capacity forming. Every press is custom-engineered to the client's application, with tailor-made table size, daylight, stroke, and cushion capacity.
