Hydraulic Deep Drawing Presses (H-Frame): 100–1000 Ton

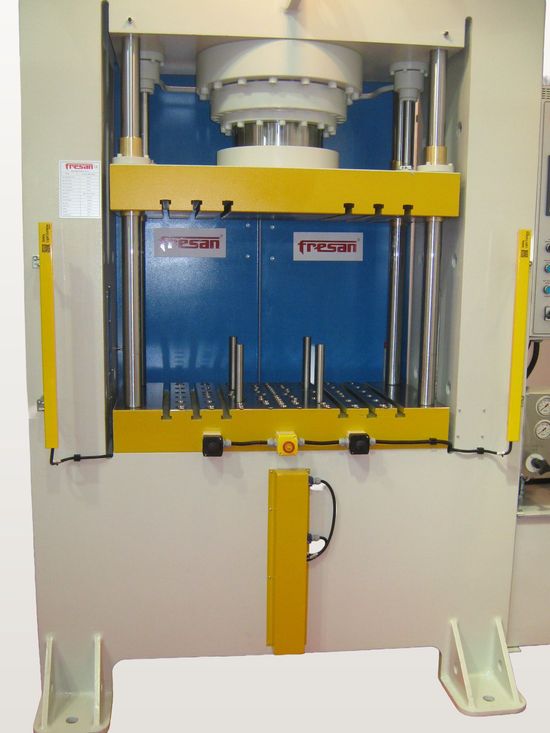

Fresan H-frame presses shape sheet metal of varying thickness and grades - steel, stainless steel and alloys - under high pressure between male and female dies. The twin-column H-frame carries the drawing force symmetrically through both uprights, keeping deflection low and blank-holder pressure even across large dies. Every press is engineered to order, from 100 to 1000 tons, built to each customer's requested dimensions.
Why an H-frame for deep drawing?
In deep drawing, the ram pulls the blank into the die over a long stroke while the cushion holds the sheet under controlled pressure. An open-front frame deflects asymmetrically under that combination of forces; a closed H-frame does not. The symmetric load path keeps the ram square to the table through the full stroke, which protects tool life and part quality on deeper draws, thicker sheet and larger die sets - the work this press type is built for.
Engineered, not adapted
Unlike our C-frame lines, H-frame presses aren't offered in fixed sizes. A 200-ton press built for 600mm of daylight and a 200-ton press built for 700mm of daylight are genuinely different machines - the frame, and often the cylinder, are sized differently for each. Every application is different, so we engineer each H-frame press around the force, dimensions and cushion requirements of the part and die it will actually run - not adapted from a fixed design. That precision carries into the machine's working life, too: a frame sized to your real loads isn't carrying stress it was never built for. The result is a press sized to your tooling, not the nearest match from a catalog.
What we need to quote your press
An accurate quote starts with your numbers. Add cushion details if your draw needs one.
Frame & cylinder
- •Press force (tonnage)
- •Stroke
- •Daylight (distance between tables)
- •Table size (bed size)
Die cushion
- •Cushion force
- •Cushion stroke
Standard on every build
Control & operation

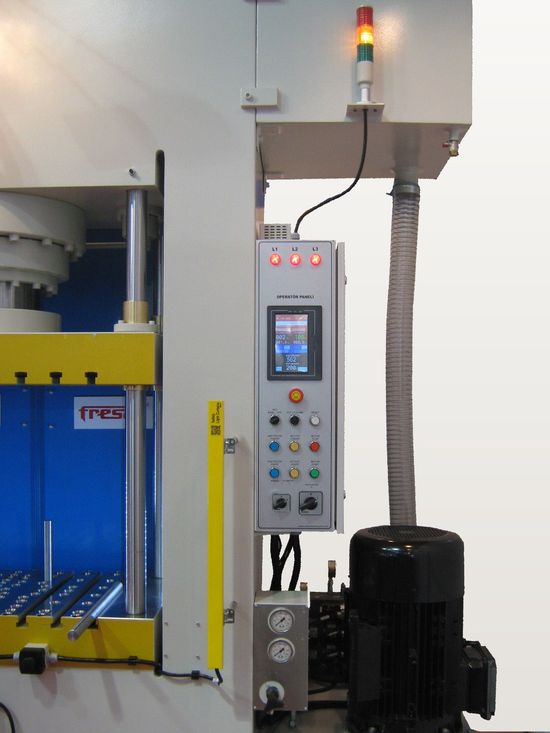

- •Touchscreen control
- •Recipes for different product configurations
- •Operating parameters (force, stroke, etc.) adjustable via touchscreen
- •Light curtains around the table
- •Safety controller
- •Overpressure/safety valve
- •Two-hand & foot pedal control
Hydraulics & construction
- •Rigid twin-column H-frame construction for low deflection under heavy loads
- •Secondary pistons for low cycle times
- •Heavy-duty guides for excellent stability under heavy loads
- •Central lubrication system
- •Hydraulic system with DGUV/TÜV certified valves
- •CE safety accreditation
- •Hydraulic filter contamination switch
From your numbers to your finished press
Share Parameters
Send force, stroke, daylight, table size and cushion requirements - the numbers that size your frame and cylinder.
Get Your Quote
We engineer the frame, cylinder and cushion around your numbers and return a firm, itemized quote.
Build & Test
Every press is built and function-tested in-house before it ships, to the same standard as our full product line.
Deliver & Support
Installation guidance and after-sales support from the same team that engineered your press.
Typical deep drawing applications
Shallow forming
- •Cookware & kitchenware
- •Household appliances
- •Sinks & basins
- •Oil filter housings
- •HVAC components
Deep drawing
- •Fire extinguisher cylinders
- •LPG / compressed gas cylinders
- •Automotive fuel tanks
- •EV battery enclosures & trays
Specialty
- •Defense
- •Aerospace
- •Pressure vessel / oil & gas
Need a smaller press with faster cycle times? Our C-frame hydraulic presses - up to 150 tons
For general forming and shallow drawing up to 150 tons, with three-sided die access for fast tool changes. Add the optional hydraulic die cushion for deeper draws.
