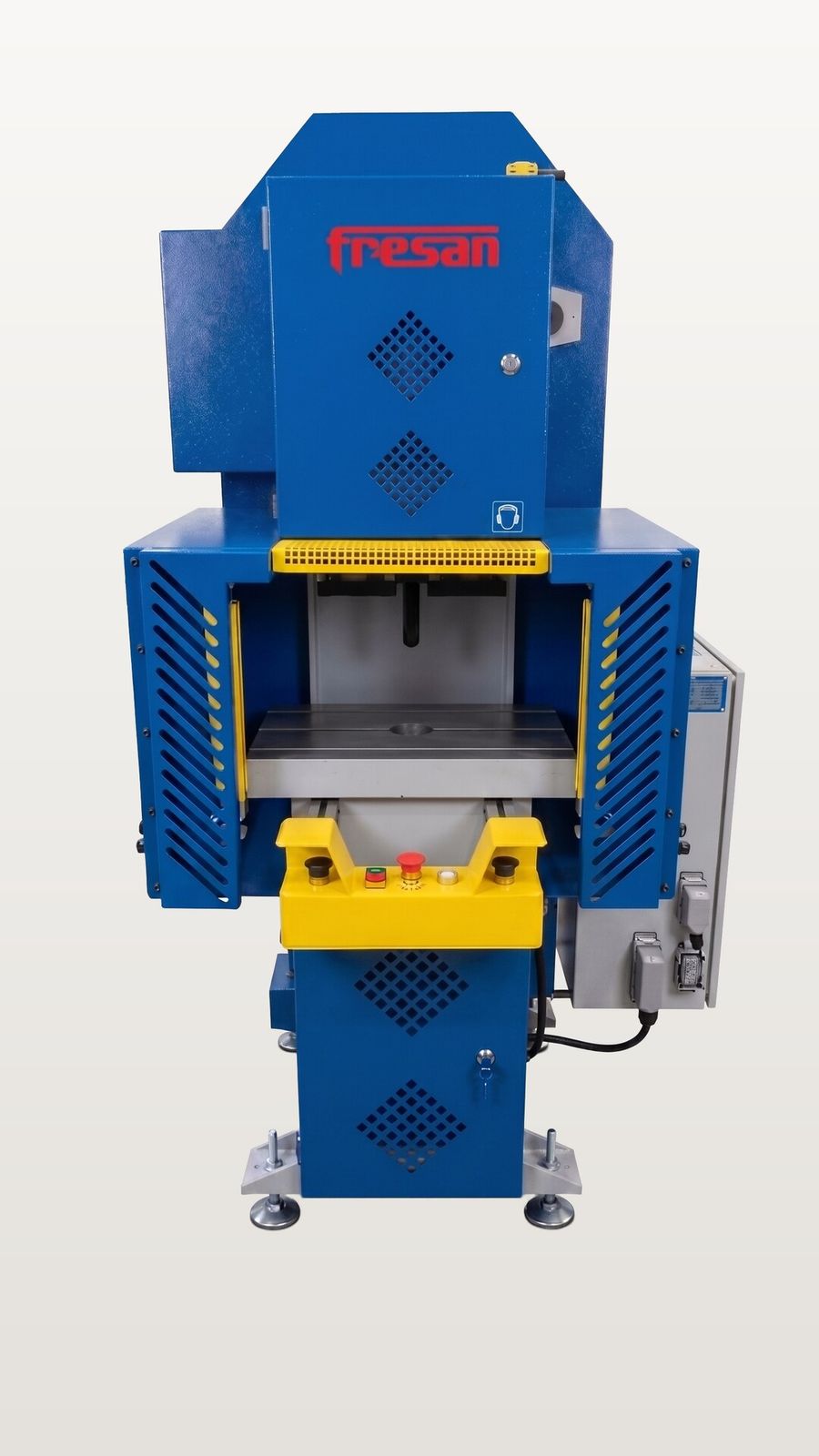

10 Ton Eccentric Press – FP 10P
The FP 10P is our smallest and fastest eccentric press, rated at 10 tons. Direct flywheel drive delivers up to 200 strokes per minute, making it well suited to high-volume, light-tonnage parts. With a 0 - 40 mm stroke adjustment range, an AC inverter for speed control, and a built-in auxiliary cam, it's ready to run with servo or pneumatic sheet feeders straight out of the box. Despite its compact tonnage, its 320 x 490 mm table offers generous room for die mounting. Like every Fresan press, the FP 10P is CE marked and built for years of continuous production use.
Technical Specifications
Complete technical specifications for the FP 10P. All values in millimetres unless noted - use the toggle to switch to inches.
| Model | FP 10P |
|---|---|
| Nominal Force (kN) | 100 |
| Rated Output Distance (mm) (from BDC) †Rated Output Distance (in) (from BDC) † | 1.40.06 |

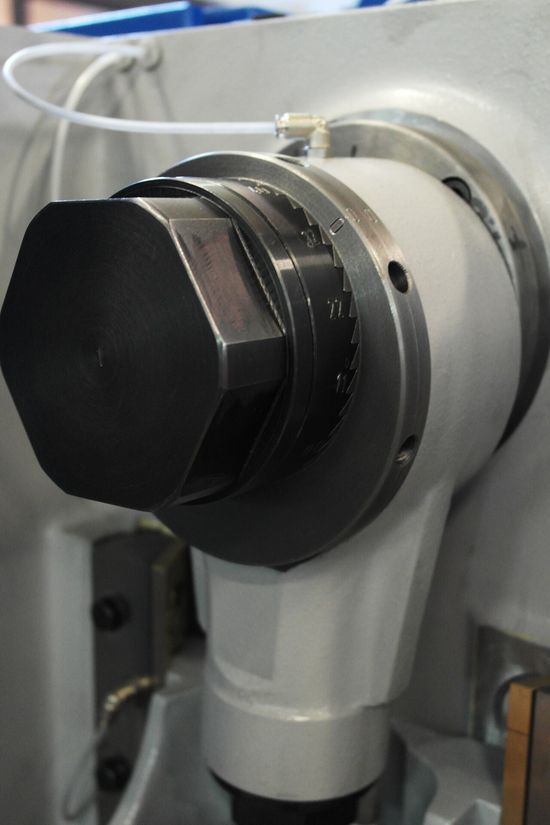

| Stroke Adjustment (mm)Stroke Adjustment (in) | 0 - 400 - 1.57 |
| Ram Adjustment (mm)Ram Adjustment (in) | 401.57 |
| Strokes per Minute (SPM) | 200 |
| Daylight (mm) ††Daylight (in) †† | 2158.46 |
| Table Dimensions (mm)Table Dimensions (in) | 320 x 49012.6 x 19.29 |
| Ram Surface (mm)Ram Surface (in) | 195 x 2707.68 x 10.63 |
| Shank Hole (⌀ mm)Shank Hole (⌀ in) | 301.18 |
| Center Depth (mm) †††Center Depth (in) ††† | 2108.27 |
| Air Pressure (Bar) | 4-6 |
| Weight (kg)Weight (lb) | 9001980 |
| Table Thickness (mm)Table Thickness (in) | 501.97 |
| Table Bore (⌀ mm)Table Bore (⌀ in) | 602.36 |
† Rated output distance from the bottom dead center (BDC) at which the nominal force is reached.
†† Daylight: maximum distance between ram and table (ram at uppermost position).
††† Distance from the center of the table to the c-frame.
Standard Equipment
Safety Features
- •Conformity to CE safety regulations
- •Safety controller

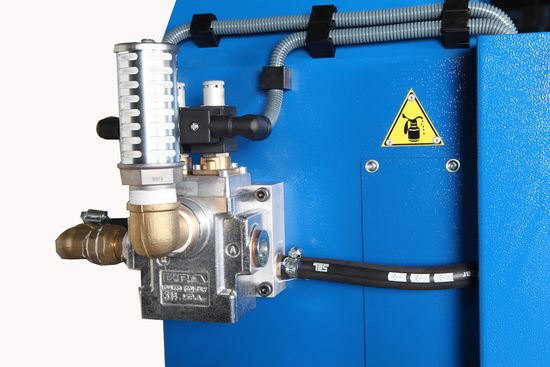

- •Double body press safety valve
- •Light curtains around worktable
- •Covers with safety switches
- •Mechanical fuse for overload protection
Construction & Drive Mechanics
- •Welded steel frame, engineered for high rigidity
- •Crankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC ground for min. surface friction
- •SnBz-12 quality bronze bushings
- •Direct flywheel drive
- •Pneumatic clutch-brake combination

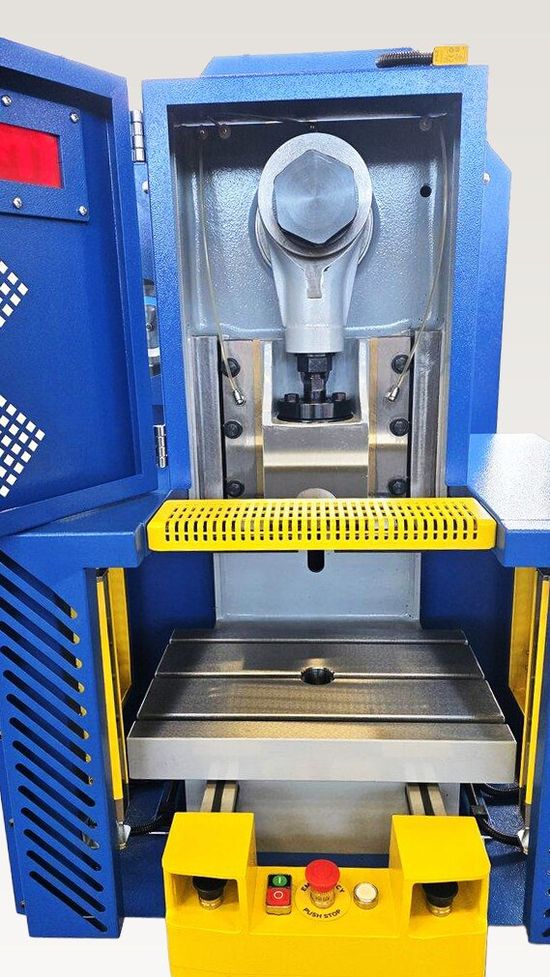

- •Ram with 4 sliding surfaces
Control & Operation
- •AC inverter (standard on all models)
- •Automatic central lubrication (PLC-controlled)
- •Used oil collectors
- •HMI/touchscreen operator panel
- •2-hand & foot pedal control
- •Automatic cyclic mode with light curtains
- •Vibration pads/shock absorbers
Optional Equipment
Available extras and automation options
- •Additional worktable
- •Part ejector mechanisms (upper and/or lower ejectors)
- •Material feeding, loading & unloading systems (Decoilers, straighteners, pneumatic & servo feeders...)
- •Special design
