20 Ton Eccentric Press – FP 20P
The FP 20P sits third in our five-model flywheel-driven range, rated at 20 tons. Its continuous-operation speed steps down slightly from the smaller models, to 160 strokes per minute, with a 0 - 50 mm stroke range and a 360 x 550 mm table. It's well matched to light-tonnage, high-volume punching and blanking work, and its frame accommodates noticeably larger dies than the FP 10P or FP 15P. Like every Fresan press, it's CE marked and built for sheet-feeder integration and years of continuous use.
Technical Specifications
Complete technical specifications for the FP 20P. All values in millimetres unless noted - use the toggle to switch to inches.
| Model | FP 20P |
|---|---|
| Nominal Force (kN) | 200 |
| Rated Output Distance (mm) (from BDC) †Rated Output Distance (in) (from BDC) † | 1.70.07 |
| Stroke Adjustment (mm)Stroke Adjustment (in) | 0 - 500 - 1.97 |
| Ram Adjustment (mm)Ram Adjustment (in) | 401.57 |
| Strokes per Minute (SPM) | 160 |
| Daylight (mm) ††Daylight (in) †† | 2409.45 |
| Table Dimensions (mm)Table Dimensions (in) | 360 x 55014.17 x 21.65 |
| Ram Surface (mm)Ram Surface (in) | 345 x 20513.58 x 8.07 |
| Shank Hole (⌀ mm)Shank Hole (⌀ in) | 351.38 |
| Center Depth (mm) †††Center Depth (in) ††† | 2007.87 |
| Air Pressure (Bar) | 4-6 |
| Weight (kg)Weight (lb) | 12502760 |
| Table Thickness (mm)Table Thickness (in) | 602.36 |
| Table Bore (⌀ mm)Table Bore (⌀ in) | 702.76 |
† Rated output distance from the bottom dead center (BDC) at which the nominal force is reached.
†† Daylight: maximum distance between ram and table (ram at uppermost position).
††† Distance from the center of the table to the c-frame.
Standard Equipment
Safety Features
- •Conformity to CE safety regulations
- •Safety controller
- •Double body press safety valve

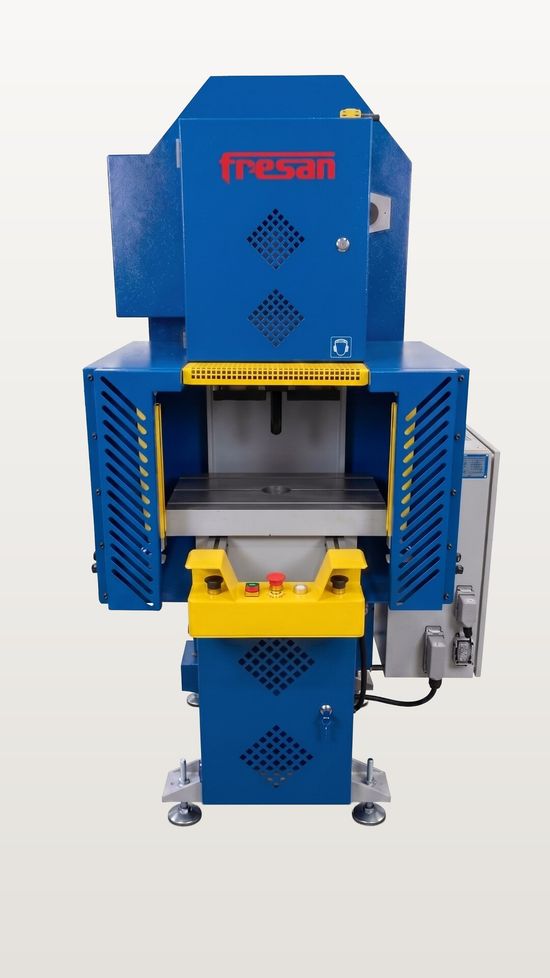

- •Light curtains around worktable
- •Covers with safety switches
- •Mechanical fuse for overload protection
Construction & Drive Mechanics
- •Welded steel frame, engineered for high rigidity
- •Crankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC ground for min. surface friction
- •SnBz-12 quality bronze bushings
- •Direct flywheel drive
- •Pneumatic clutch-brake combination

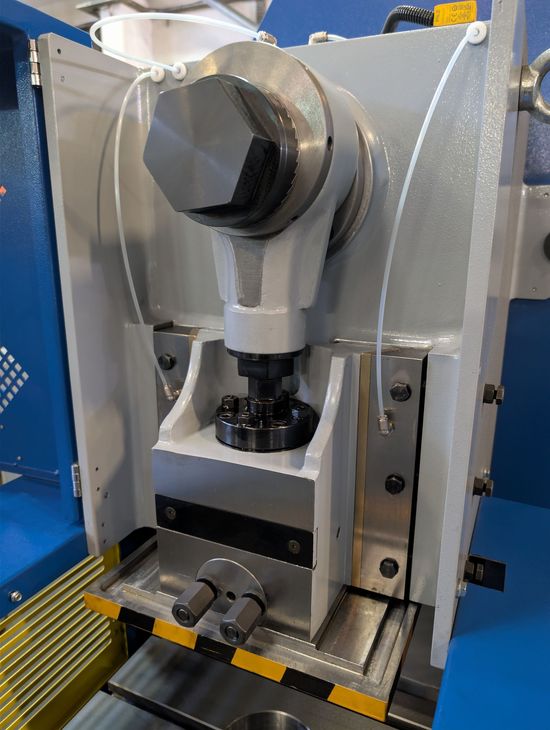

- •Ram with 4 sliding surfaces
Control & Operation
- •AC inverter (standard on all models)

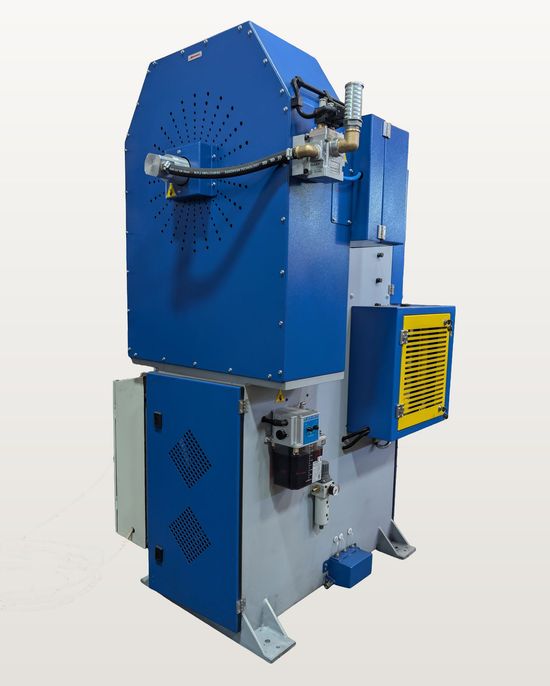

- •Automatic central lubrication (PLC-controlled)

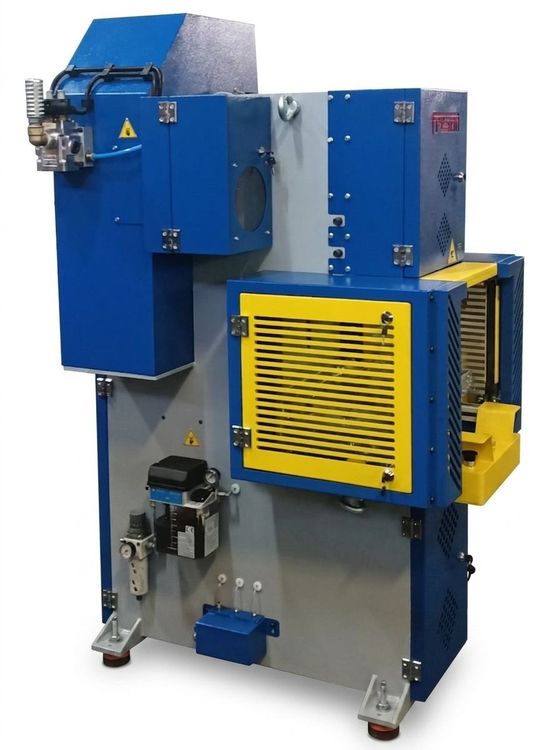

- •Used oil collectors
- •HMI/touchscreen operator panel

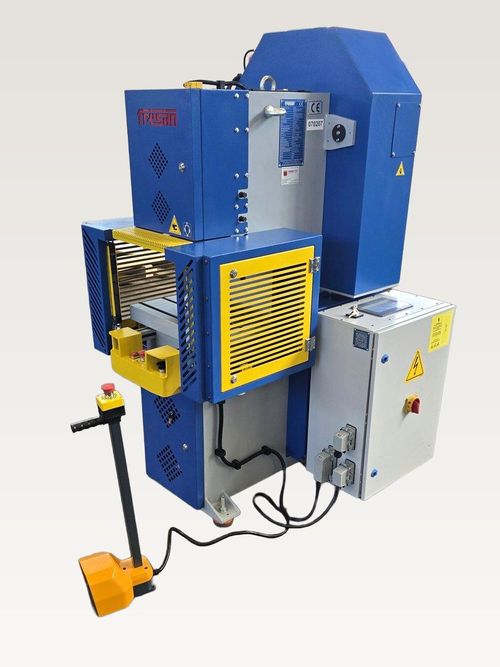

- •2-hand & foot pedal control
- •Automatic cyclic mode with light curtains
- •Vibration pads/shock absorbers
Optional Equipment
Available extras and automation options
- •Additional worktable
- •Part ejector mechanisms (upper and/or lower ejectors)
- •Material feeding, loading & unloading systems (Decoilers, straighteners, pneumatic & servo feeders...)
- •Special design
