100 Ton Eccentric Press – FP 100P

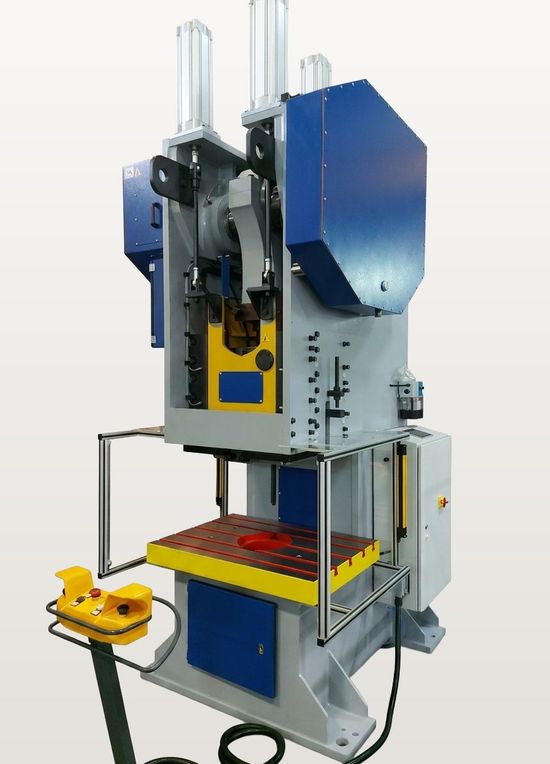

The FP 100P sits at the middle of our back-geared range, rated at 100 tons. Its wide 0 - 132 mm stroke range suits complex forming and shallow-drawing work, at 60 strokes per minute in continuous operation. As with every model from 80 tons up, the ram's contact surface closely matches the table in size, spreading force evenly across the part and allowing larger progressive dies than competing presses. Its 700 x 1000 mm table, motorized ram adjustment, and hydraulic overload protector round out a machine built for fast, safe die changes. Like every Fresan press, it's CE marked and built for years of continuous production use.
Technical Specifications
Complete technical specifications for the FP 100P. All values in millimetres unless noted - use the toggle to switch to inches.
| Model | FP 100P |
|---|---|
| Nominal Force (kN) | 1000 |
| Rated Output Distance (mm) (from BDC) †Rated Output Distance (in) (from BDC) † | 4.50.18 |
| Stroke Adjustment (mm)Stroke Adjustment (in) | 0 - 1320 - 5.2 |
| Ram Adjustment (mm)Ram Adjustment (in) | 903.54 |
| Strokes per Minute (SPM) | 60 |
| Daylight (mm) ††Daylight (in) †† | 45017.72 |
| Table Dimensions (mm)Table Dimensions (in) | 700 x 100027.56 x 39.37 |
| Ram Surface (mm)Ram Surface (in) | 540 x 65021.26 x 25.59 |
| Shank Hole (⌀ mm)Shank Hole (⌀ in) | 602.36 |
| Center Depth (mm) †††Center Depth (in) ††† | 35013.78 |
| Air Pressure (Bar) | 4-6 |
| Weight (kg)Weight (lb) | 725015980 |
| Table Thickness (mm)Table Thickness (in) | 853.35 |
| Table Bore (⌀ mm)Table Bore (⌀ in) | 953.74 |
† Rated output distance from the bottom dead center (BDC) at which the nominal force is reached.
†† Daylight: maximum distance between ram and table (ram at uppermost position).
††† Distance from the center of the table to the c-frame.
Standard Equipment
Safety Features
- •Conformity to CE safety regulations
- •Safety controller
- •Double body press safety valve
- •Light curtains around worktable
- •Covers with safety switches
- •Hydraulic overload protector
Construction & Drive Mechanics
- •Welded steel frame, engineered for high rigidity

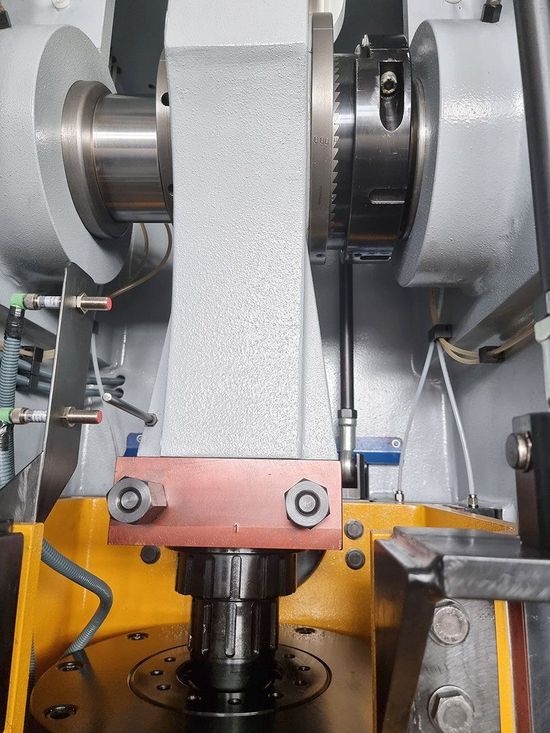

- •Crankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC ground for min. surface friction
- •SnBz-12 quality bronze bushings
- •Fully closed gearbox with silent helical gears running in oil bath
- •Pneumatic clutch-brake combination
- •Pneumatic counterbalance cylinders
- •Ram with 8 sliding surfaces
Control & Operation
- •AC inverter (standard on all models)

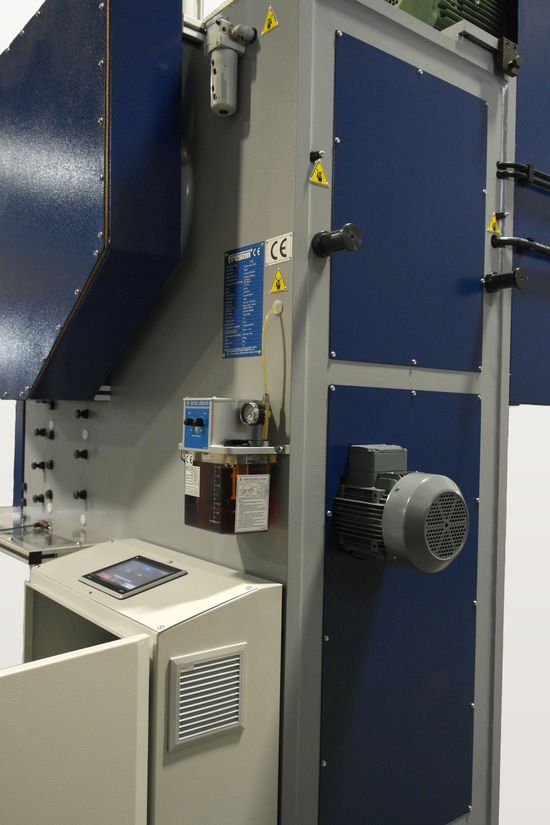

- •Automatic central lubrication (PLC-controlled)
- •Used oil collectors
- •HMI/touchscreen operator panel
- •2-hand & foot pedal control
- •Automatic cyclic mode with light curtains
- •Vibration pads/shock absorbers
- •Motorized ram adjustment
Optional Equipment
Available extras and automation options
- •Additional worktable
- •Part ejector mechanisms (upper and/or lower ejectors)
- •Material feeding, loading & unloading systems (Decoilers, straighteners, pneumatic & servo feeders)
- •Special design
