60 Ton Eccentric Press – FP 60P
The FP 60P is the entry point to our back-geared range, rated at 60 tons. Higher tonnage is achieved through the gear-reduction drive, but the ram retains the same 4-slide design used across our flywheel models. Running at 65 strokes per minute in continuous operation, with a 0 - 100 mm stroke range, it's well matched to demanding mid-tonnage work. Its 500 x 700 mm table suits larger dies than the flywheel range below it. Like every Fresan press, it's CE marked and built for years of continuous production use.
Technical Specifications
Complete technical specifications for the FP 60P. All values in millimetres unless noted - use the toggle to switch to inches.
| Model | FP 60P |
|---|---|
| Nominal Force (kN) | 600 |
| Rated Output Distance (mm) (from BDC) †Rated Output Distance (in) (from BDC) † | 3.50.14 |
| Stroke Adjustment (mm)Stroke Adjustment (in) | 0 - 1000 - 3.94 |
| Ram Adjustment (mm)Ram Adjustment (in) | 702.76 |
| Strokes per Minute (SPM) | 65 |
| Daylight (mm) ††Daylight (in) †† | 36514.37 |
| Table Dimensions (mm)Table Dimensions (in) | 500 x 70019.69 x 27.56 |
| Ram Surface (mm)Ram Surface (in) | 450 x 29517.72 x 11.61 |
| Shank Hole (⌀ mm)Shank Hole (⌀ in) | 451.77 |
| Center Depth (mm) †††Center Depth (in) ††† | 2509.84 |
| Air Pressure (Bar) | 4-6 |
| Weight (kg)Weight (lb) | 30006610 |
| Table Thickness (mm)Table Thickness (in) | 752.95 |
| Table Bore (⌀ mm)Table Bore (⌀ in) | 853.35 |
† Rated output distance from the bottom dead center (BDC) at which the nominal force is reached.
†† Daylight: maximum distance between ram and table (ram at uppermost position).
††† Distance from the center of the table to the c-frame.
Standard Equipment
Safety Features
- •Conformity to CE safety regulations
- •Safety controller
- •Double body press safety valve

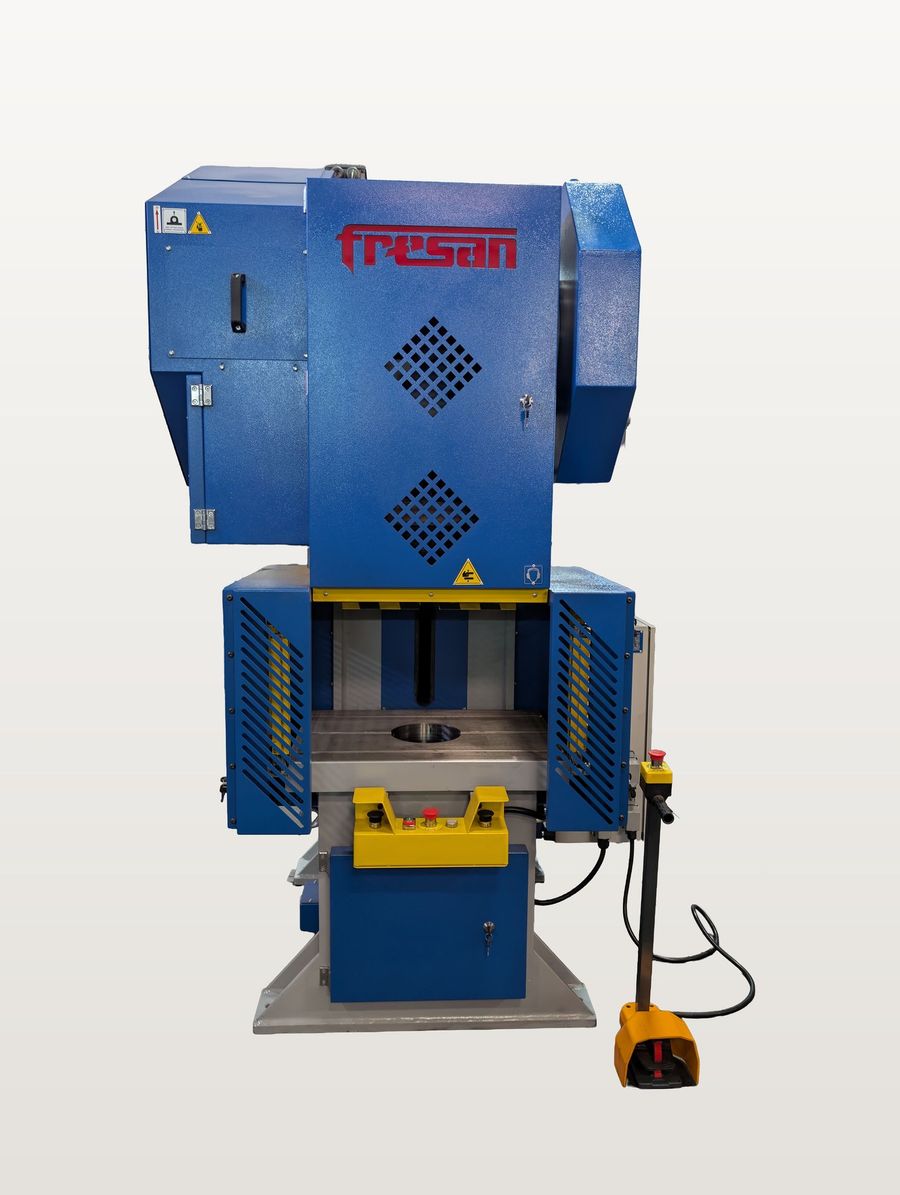

- •Light curtains around worktable
- •Covers with safety switches
- •Mechanical fuse for overload protection
Construction & Drive Mechanics
- •Welded steel frame, engineered for high rigidity
- •Crankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC ground for min. surface friction
- •SnBz-12 quality bronze bushings

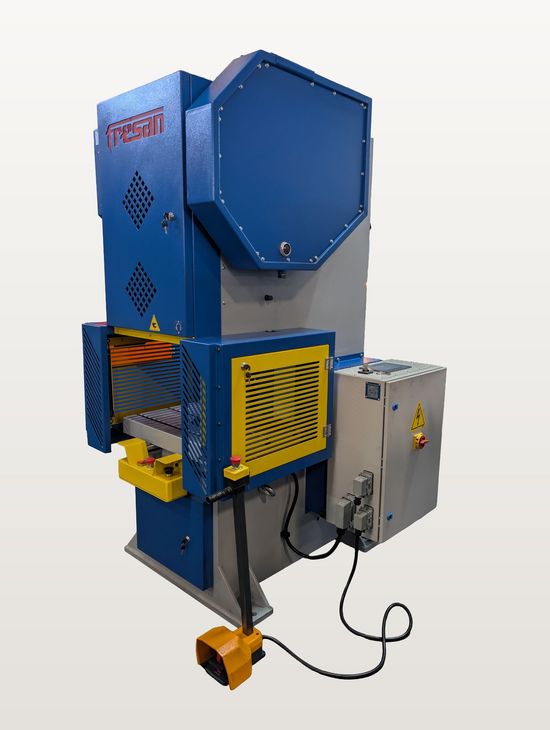

- •Fully closed gearbox with silent helical gears running in oil bath
- •Pneumatic clutch-brake combination

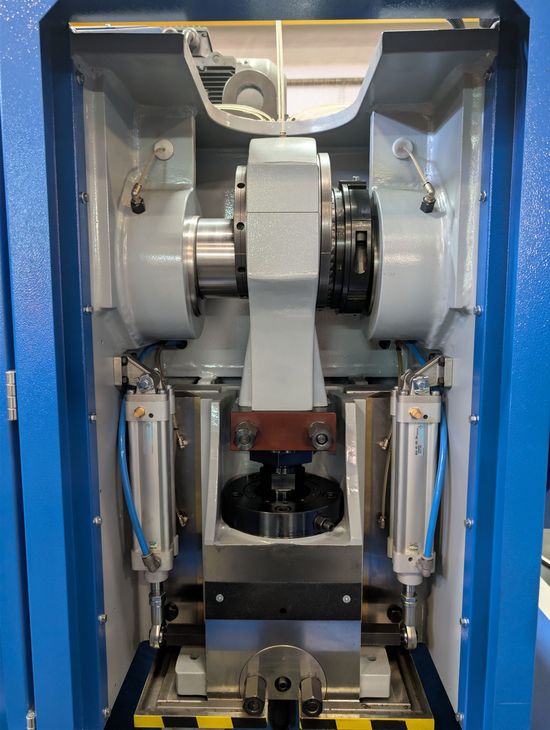

- •Pneumatic counterbalance cylinders
- •Ram with 4 sliding surfaces
Control & Operation

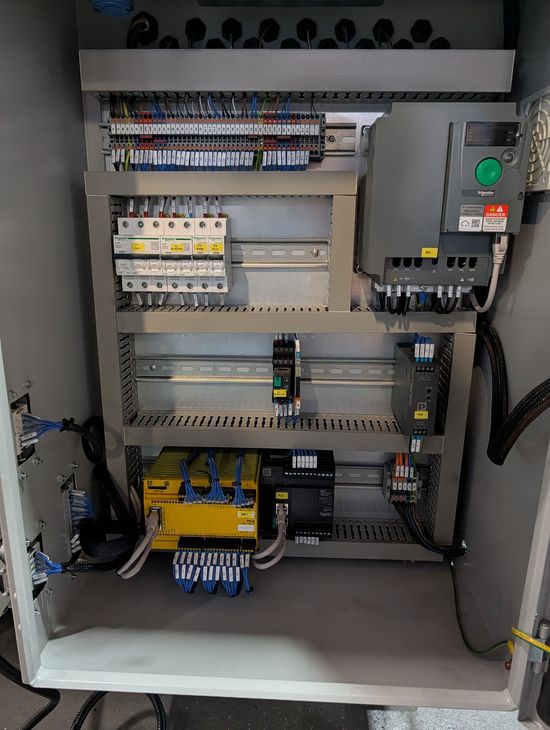

- •AC inverter (standard on all models)

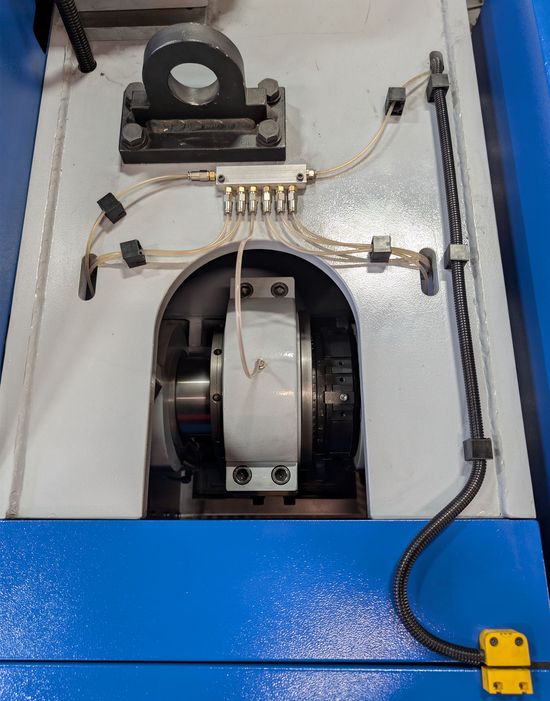

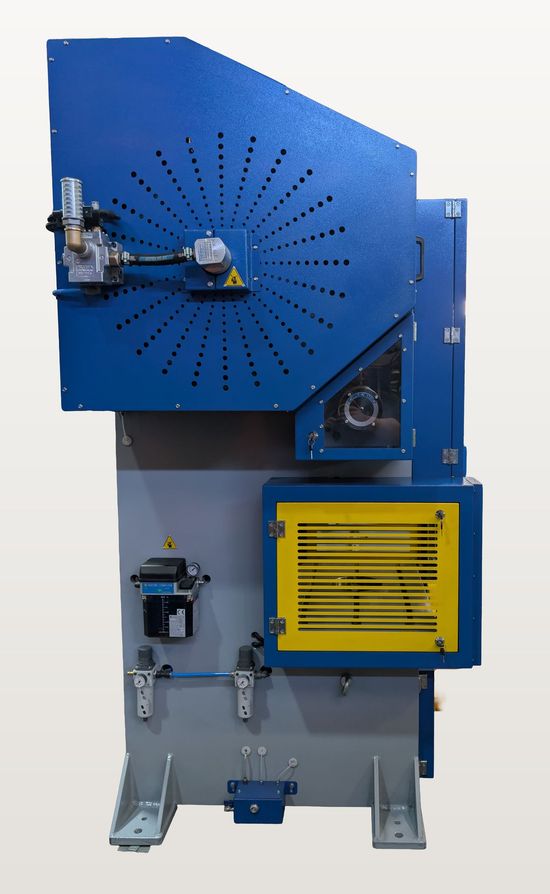

- •Automatic central lubrication (PLC-controlled)
- •Used oil collectors
- •HMI/touchscreen operator panel
- •2-hand & foot pedal control
- •Automatic cyclic mode with light curtains
- •Vibration pads/shock absorbers
Optional Equipment
Available extras and automation options
- •Additional worktable
- •Part ejector mechanisms (upper and/or lower ejectors)
- •Material feeding, loading & unloading systems (Decoilers, straighteners, pneumatic & servo feeders)
- •Special design
